3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E

Product Categories
Hangzhou Dreamy Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E

  • 1
  • 2

Brand Name : Zhuiming

Model Number : L116N-E

Certification : CE

Place of Origin : China (Mainland)

MOQ : 300 sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 sets per day

Delivery Time : 40-45 days after payment

Packaging Details : 1 set in 1 box, 10 sets in 1 carton

Operation : Maintained

Lamp type : 6pcs SMD 5730 LED

Battery : Ni-Cd 3.6V1.8Ah

Emergency Time : >3 hours

Installation : Ceiling Recessed

Construction : ABS Casing, Acrylic Plate

Input Voltage : 220-240V 50/60Hz

Charging Current : 120mA

Size : 220x30x30mm

IP Rate : IP20

Contact Now

3W LED Ceiling Recessed Double-side Emergency Commerical Exit Sign

Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.

Product Specification

  • Operation: Maintained
  • Input Voltage: 220-240V 50/60Hz
  • Lamp Type: 6pcs SMD 5730 LED
  • Battery: Ni-Cd Battery 3.6V1.8Ah
  • Indicator: Red LED--Charging, Green LED--AC power on
  • Duration Time: 3 Hours
  • Construction: Aluminum Masterial End Cap, Acylic Plate
  • IP Rate: IP20
  • Installation: Ceiling Recessed
  • Working Temperature: -10℃ to 55℃
  • Size:265mmx30mmx30mm

Operation wire:

You can choose installing Emergency lighting in No-Maintained Lighting modality and in Maintained Lighting modality.

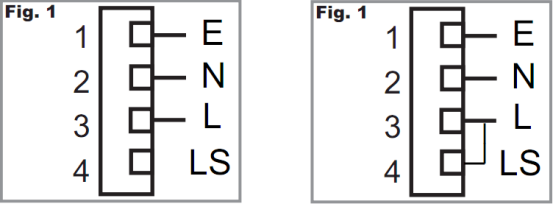

1)In Fig.1 is shown connection to be made to have No-Maintained lighting modality. LED emergency light will be switched ON, if there is a blackout.

2)In Fig.2 is shown connection to be made to have Maintained lighting modality. Differerence is represented by a jumper that will drive input voltage to PIN 4 .LED emergency light will be always switched ON.

3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E

Product Show:

3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
